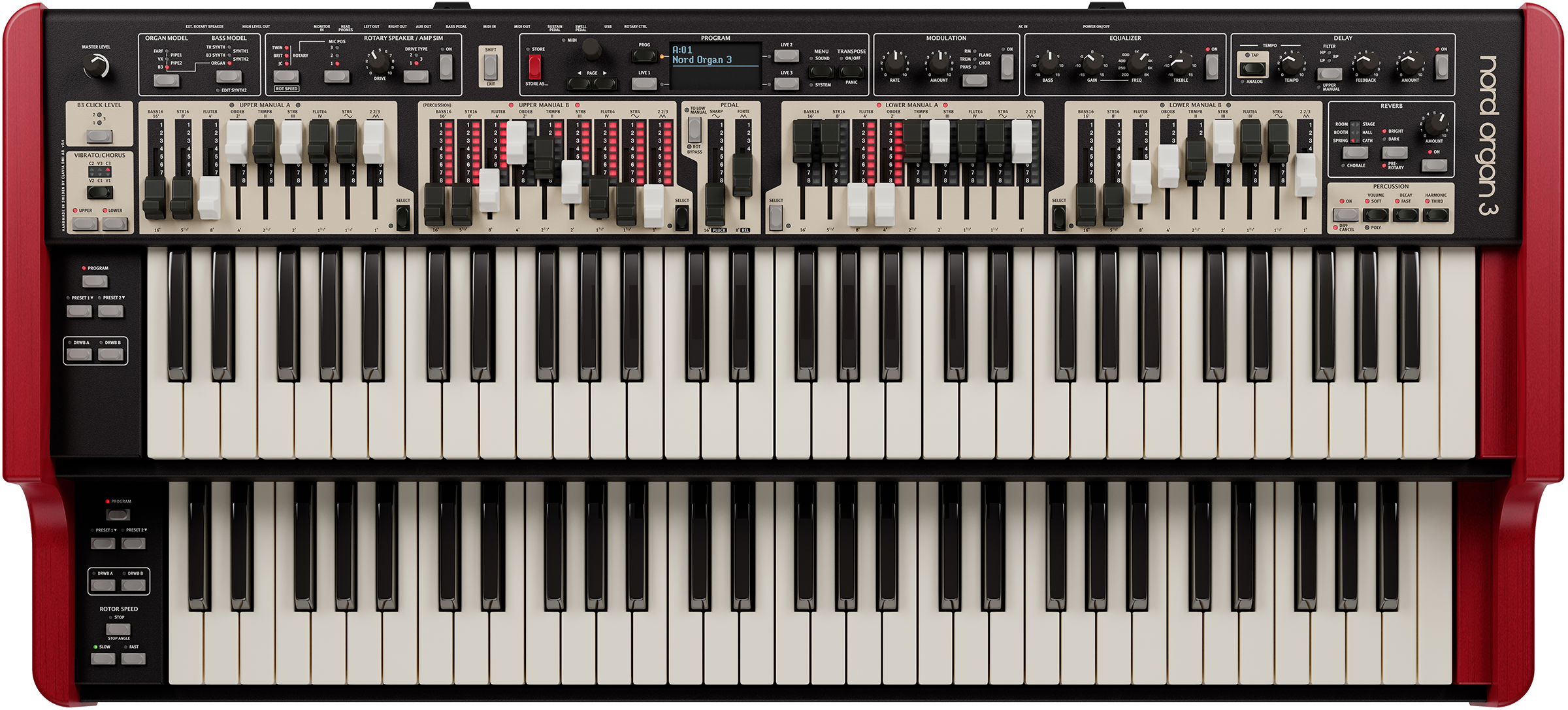

Nord Organ 3

The acclaimed Nord Organ is back — reborn and reimagined as the all-new Nord Organ 3. The latest generation of our Organ series featuring massive improvements to sound, design and performance. With a greatly enhanced organ engine, added modulation effects and a new exceptional-sounding rotary speaker emulation, the Nord Organ 3 offers an unsurpassed level of detail and realism.

Enquire

Specifications

Key Features

New panel design with OLED display
2 x 61 Triple Sensor Semi Weighted Waterfall Keyboard
Triple sensor keybeds
LED indicators for preset drawbar settings
Aux output with routing options for Bass/Pedal drawbars and more
Per program Transpose function
11-pin Leslie connector
400 Program locations
3 Live Programs

Organ

B3, Vox, Farfisa models with full polyphony
2 Pipe Organ models with full polyphony
Organ Bass models: B3, Vox, Farfisa and Pipe
Synth Bass models: B3 synth, Trek and Taurus
Percussion Controls with Poly and DB9 Cancel options
Vibrato/Chorus with B3 Deep mode

Rotary Speaker/Amp

Brand new Rotary Speaker emulation
Multiple options for microphone placement
3 Drive Types and Drive amount control
JC, Brit and Twin amp and speaker emulations

Effects

Modulation: Phaser, Tremolo, Ring Mod, Flanger and Chorus with Rate and Amount controls
3-band Equalizer with sweepable middle band
Delay: Analog mode, LP/HP/BP Feedback filters, Feedback Amount, Dry/Wet control, Tempo control with Tap option, Upper Manual only mode
Reverb: Spring, Booth, Room, Stage, Hall, Cathedral, with Chorale, Bright/Dark, Pre-Rotary option and Amount control

Connections

Stereo Headphone Output - ¼", 6,35 mm stereo jack
2 Line Level Audio Outputs, L & R - ¼", 6,35 mm jacks, unbalanced
11-pin Leslie standard connector
High Level Out ¼", 6,35 mm jack
Aux Out ¼", 6,35 mm jack
Monitor Input - 1/8", 3,5 mm stereo jack
Sustain Pedal Input - ¼", 6,35 mm jack
Rotor Control Input - ¼", 6,35 mm jack, Half-Moon Switch or momentary pedal
Swell Pedal Input - ¼", 6,35 mm TRS stereo jack
MIDI In - 5 pin DIN connector
MIDI Out - 5 pin DIN connector
Bass Pedal MIDI In - 5 pin DIN connector
USB - type B connector
IEC C14 power connector

Dimensions & Weight

Dimensions: 985mm(38.8”) x 165mm (6.5”) x 446mm (17.6”)
Weight: 17kg (37.5lbs)
