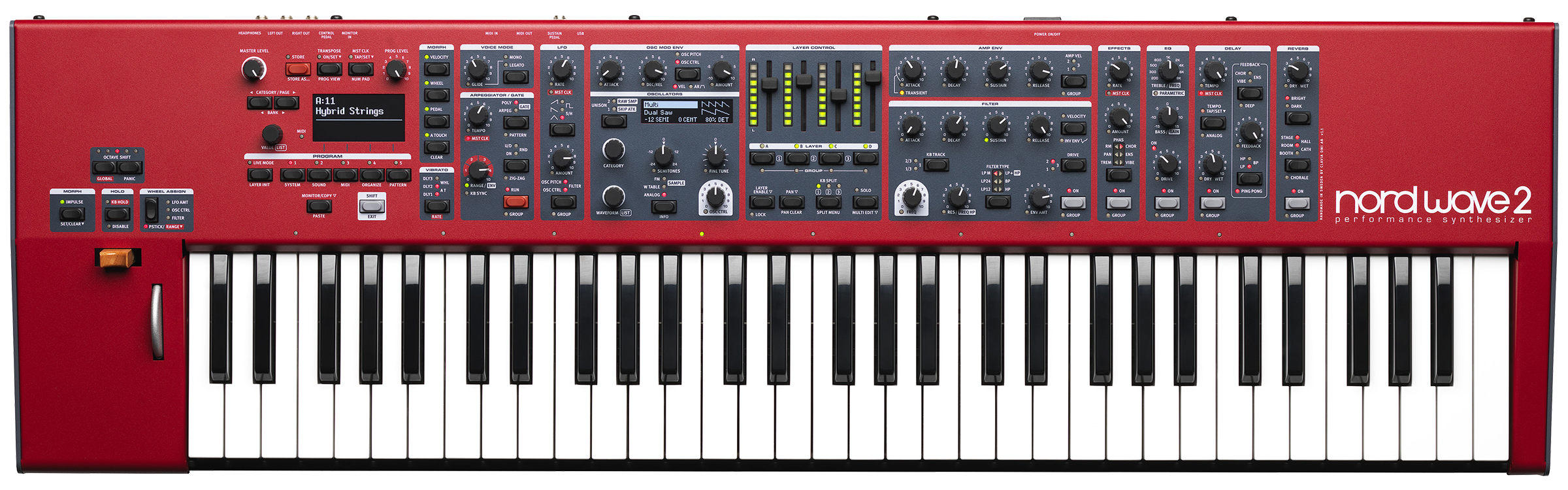

Nord Wave 2

Specifications

Key Features

Oscillator

Dedicated OLED Display for oscillator setting
Analog: Basic, Shape, Shape Sine, Multi, Sync, Bell, Noise
Wavetable: Wavetables, Formants
FM: Dual, Triple, Vocal and Multi with Harmonic and Inharmonic options
Samples: Nord Sample Library 3.0
Oscillator Control: Shape, Detune or Sync amount for Analog waveforms, Shape for Wavetables, Modulation amount for FM
Dual Osc: Unison control with 3 amount options
Semitone (-24 - +24) and Fine Tune pitch controls

Modulation

LFO generates a triangle, square, sawtooth, inverted sawtooth or sample and hold waveforms. LFO can be routed to Filter Frequency, Osc Pitch or Osc Mod. The LFO rate can be synchronized to the Master Clock
AD/AR envelope

Arpeggiator/Gate

Arpeggiator: Range: 1 - 4 octave. Modes: up, down, up/down, random. Zig-Zag option. The Arpeggio rate can be synchronized to the Master Clock.
Poly: Polyphonic Arpeggiator for retriggering of full chords at zero range, and polyphonic arpeggio of chord inversions at larger ranges.
Gate: Rhythmic level gate with adjustable hardness envelope.
Pattern Mode: Pattern mode for Arpeggiator, Trig or Gate with 30+ editable presets or custom pattern.
Patttern Editor - Dedicated editor for creating custom rhythmic patterns that can be used with Arpeggiator, Trig or Gate

Filter Section

Multi-mode filter with 12 dB (2-pole) low pass, 24 dB (4-pole) lowpass and band pass, high pass, Ladder M, low pass+high pass characteristics.
Cut off, Resonance, envelope amount, envelope amount controlled by velocity.
ADSR envelope.
Filter keyboard tracking can be set to off, 1/3, 2/3 or full.
Adjustable Filter Distortion

Effects

FX section with Tremolo, Pan, Ring Modulation, Chorus, Ensemble and Vibe.
EQ with Bass/Treble control or Parametric 1 Band control.
Drive effect for tube-distortion
Delay section with rate/time, tap tempo, analog mode, stereo ping-pong, dry/wet mix. The Delay speed can be synchronized to the Master Clock. Feedback loop effects: Chorus, Vibe and Ensemble, Feedback filters: HP, LP and BP.
Reverb section with five algorithms (Booth, Room, Stage, Hall, Cathedral) + Dark, Bright and Chorale (modulated Reverb)

Dimensions & Weight

990 x 100 x 295 mm (38,9" x 3,9" x 11.6")
8,75 kg (19.29lbs)
